How does a plotter cut window film?
It works like a printer that cuts instead of prints. The installer picks the vehicle in the software, and the plotter cuts each window’s outline from a flat sheet on its own bed.
The patterns come from libraries kept for installers. LLumar, for example, offers its dealers Core cutting software, which it describes as having “1000s of verified patterns”, a “full pattern library, continuously updated” and features meant “to significantly reduce film waste.” Whatever the library, the pattern is chosen by the year, make and model of the car being tinted.
How is that different from hand-cut tint?
Hand-cut film is sized on the car itself. Avery Dennison’s automotive film bulletin has installers lay film on the outside of the window, trim it with a knife to about 5 mm over the glass, then mark the outline and cut it so the knife stays off “the car window.”
So even hand-cut instructions try to keep the blade off the glass; a plotter takes the blade out of the car altogether. That matters on back glass, where Kia’s owner’s manual warns that sharp instruments can damage the defroster conductors on the inside. The trade-offs on both methods are laid out in plotter-cut versus hand-cut tint.
What a plotter doesn’t do
It doesn’t shape the film or put it on. A cut piece is still flat, so curved glass needs heat shrinking before the piece goes onto the inner face, wet, to be squeegeed down by hand.
It also doesn’t change where film is allowed. A plotter can cut a pattern for any window, but BC law only lets film go behind the driver at any shade, with mirrors on both sides for the back window; the front side windows get nothing, clear film included, and a windshield gets a top strip no deeper than 75 mm. Brookswood Tint will still tint front doors for a customer who asks, though only after telling them plainly that the film isn’t road-legal, that a ticket is usually $109, and that a Notice & Order can force its removal and an inspection; read tinting front windows in BC before deciding.
Plotter-cut tint at Brookswood Tint

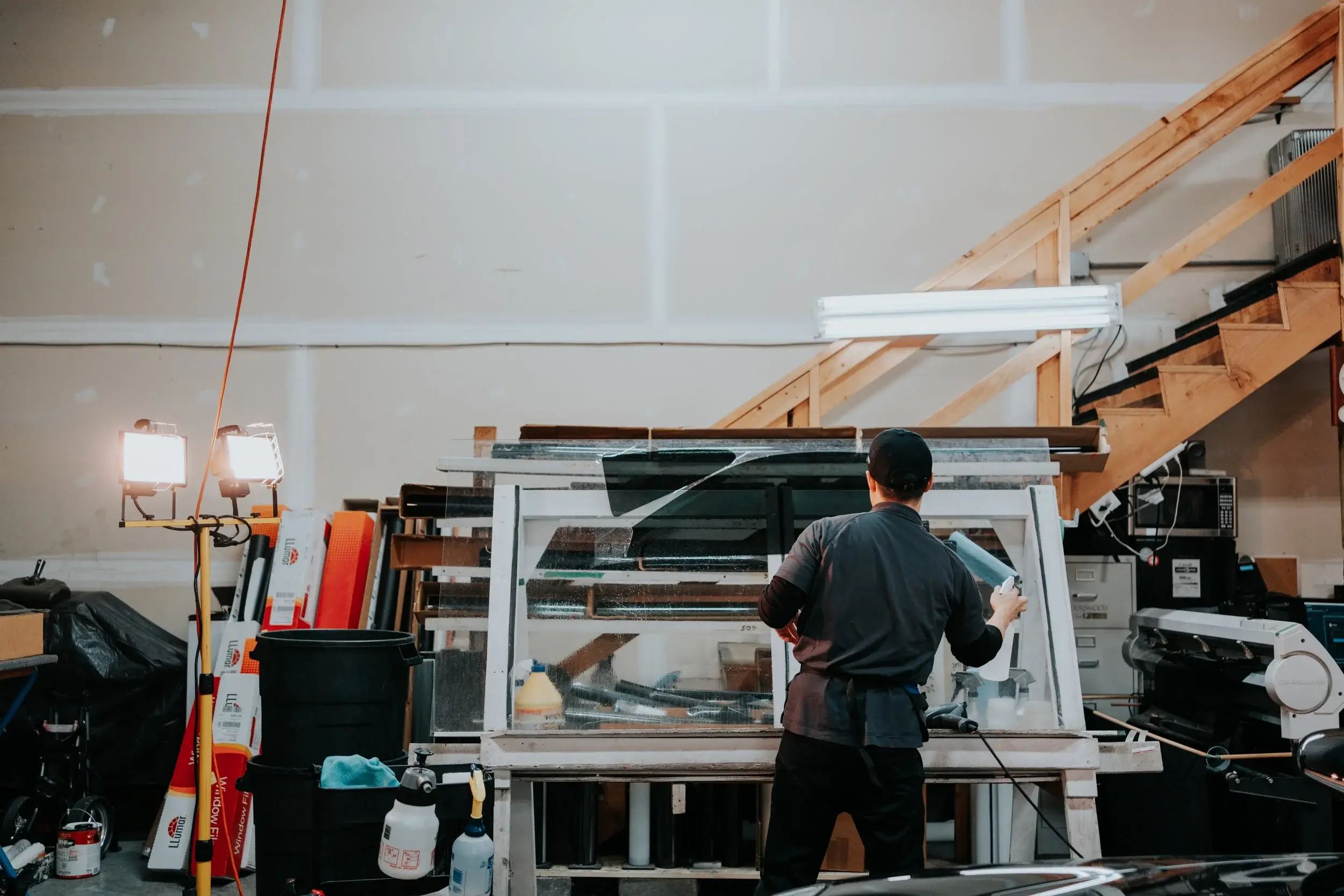

The shop runs every piece of tint it installs through its computerized plotter, matched to the vehicle’s exact year, make and model, so its installers never need a blade on your glass or trim. It keeps plotter patterns for Sprinter, Transit and ProMaster vans too, covered on van tinting.
A typical car is finished the same day. Coupes start at $220 for the rear set in LLumar ATC, sedans and pickups at $240, large SUVs and wagons at $260; IRX or AIR costs extra, and the tint price page lists it all.
